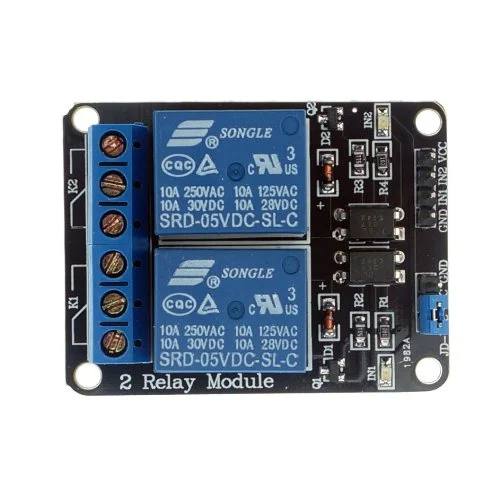

2 Channel 5V Relay Module with Optocoupler

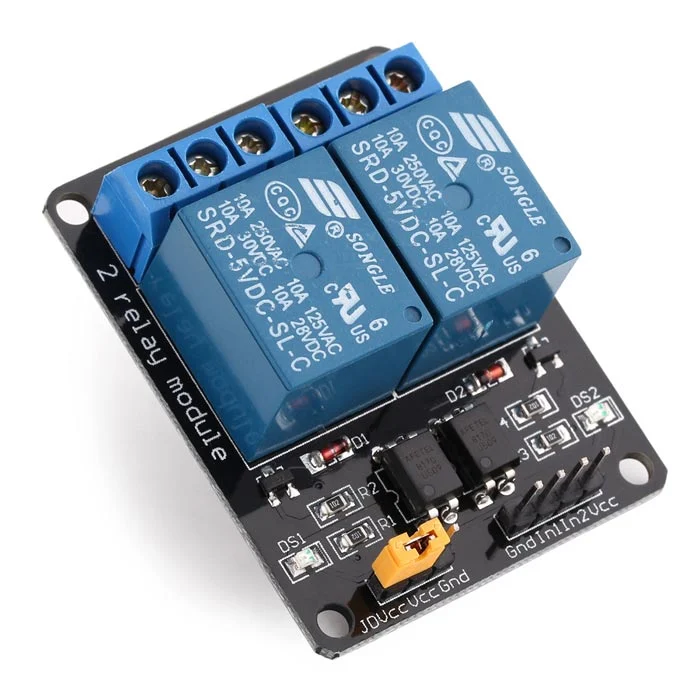

2 Channel 5V Relay Module with Optocoupler - Image 2

2 Channel 5V Relay Module with Optocoupler

For Bulk or B to B enquirers kindly mail us on business@technosam.in or call +91 7030 10 3620

Original price was: ₹180.00.Current price is: ₹78.00.

  1. Low Level Trigger Relay Module
  2. Two separate LEDs for On/Off indication of the Relay.
  3. Triggering input voltage 3.3V – 5V
  4. Two separate LEDs for On/Off indication of the Relay
  5. Triggering input voltage 3.3V – 5V 4)
  6. Back EMF protection
  7. Back EMF protection 2 LEDs to indicate when relays are ON.
  8. Works with logic level signals from 3.3V or 5V devices
  9. Opto isolation circuitry
  10. Module with diode current protection, short response time
  11. AC Control Voltage: 250V @max.10A
  12. DC Control Voltage: 30V @max. 10A
In Stock

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Have a Question? Ask a Specialist

(+91) 7030 10 3620 Mon to Fri 10 am to 5 PM

Low Prices

Affordable & Low Price Always

Genuine Products

Always The Correct Part

Same Day Despatch

We Fulill Order The Same Day

Easy Returns.

Quick & Hassle Free 7 Days Retrun

Category:
Brand:

Description

It is a 2 Channel 5V Relay Module with Optocoupler. This is a 2 Channel isolated 5V 10A relay module Optocoupler for Arduino PIC ARM. It can be used to control various appliances and other types of equipment with a large current. It can be controlled directly with 3.3V or 5V logic signals from a microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).

This relay has a 1×4 (2.54mm pitch) pin header for connecting power (5V and 0V), and for controlling the 2 relays.

The pins are marked on the PCB as:

  • GND – Connect 0V to this pin.
  • IN1 – Controls relay 1, active Low Relay will turn on when this input goes below about 2.0V
  • IN2 – Controls relay 2, active Low Relay will turn on when this input goes below about 2.0V
  • VCC – Connect 5V to this pin. Is used to power the optocouplers

Features of 2 Channel 5V Relay Module with Optocoupler :

  1. 2 LEDs to indicate when relays are ON.
  2. Works with logic level signals from 3.3V or 5V devices
  3. Opto isolation circuitry
  4. Module with diode current protection, short response time
  5. Around the board with 4 mounting holes, hole diameter 3. 1 mm, easy installation and fixing

Package Includes :

1 x 2 Channel isolated 5V 10A relay module with Optocoupler
