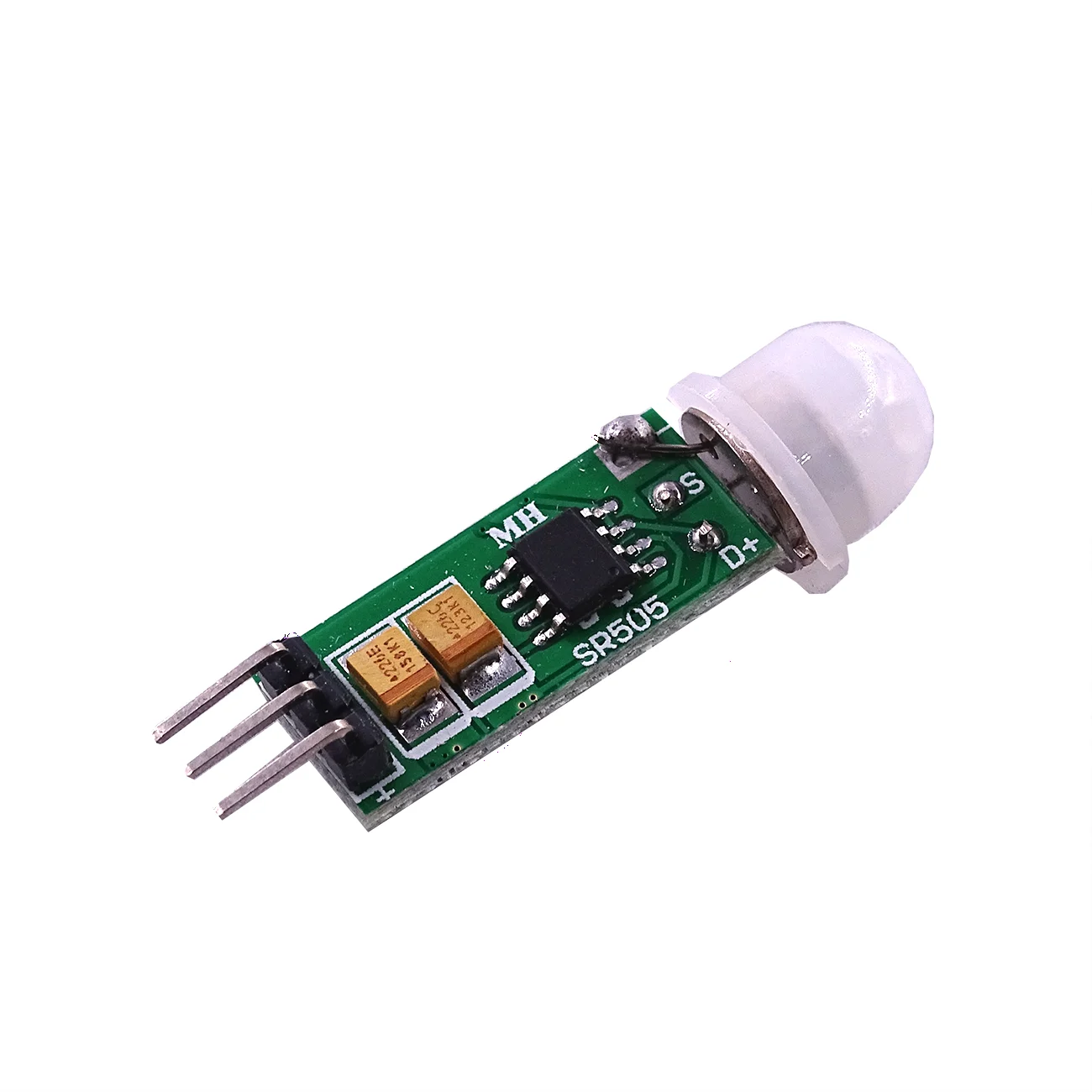

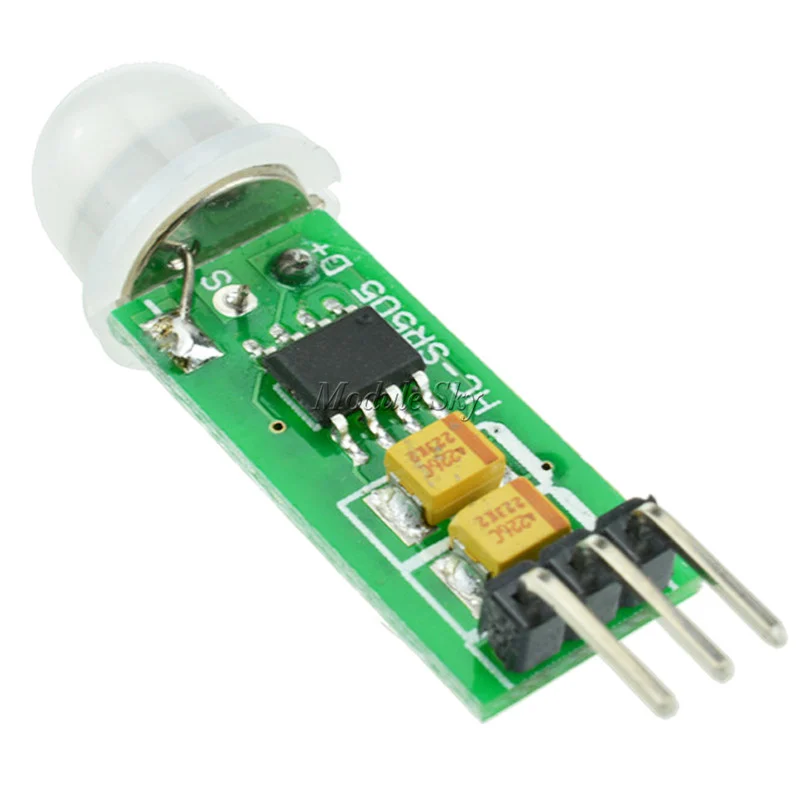

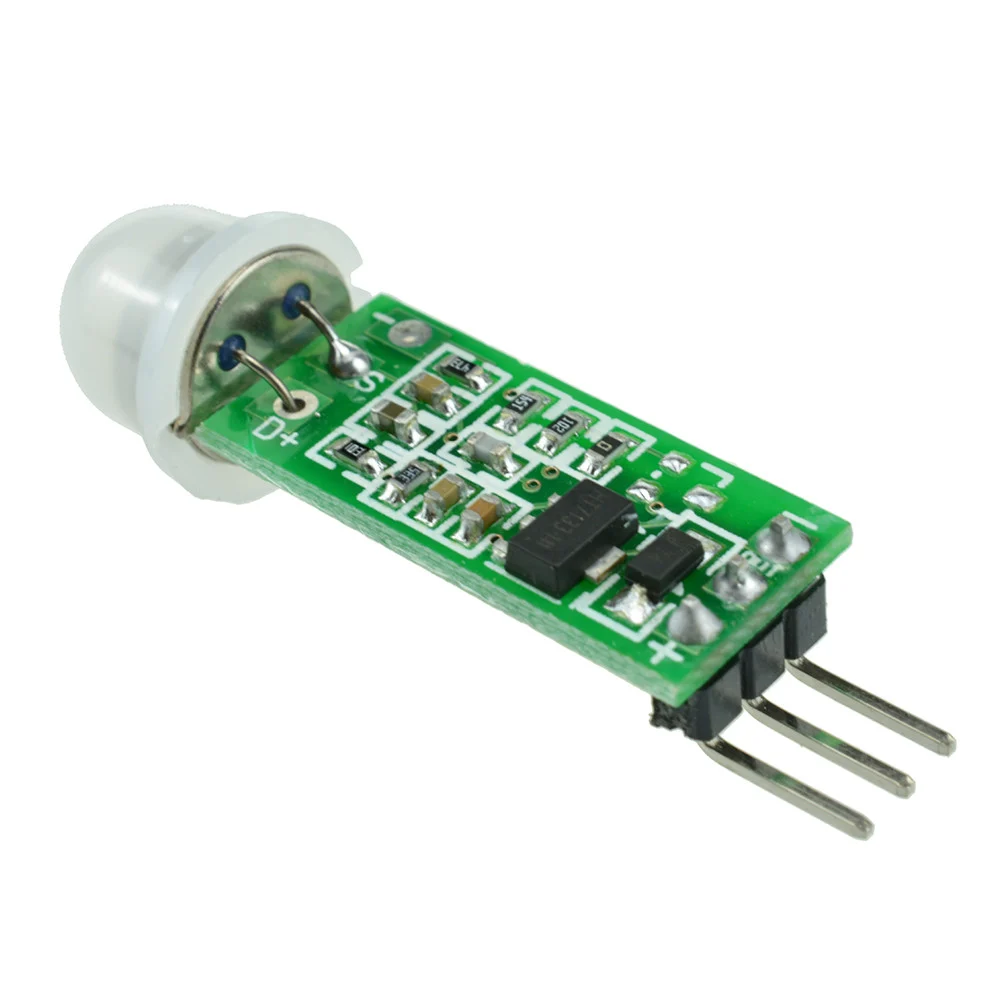

HC SR505 Mini Infrared PIR Motion Sensor
HC SR505 Mini Infrared PIR Motion Sensor - Image 2
HC SR505 Mini Infrared PIR Motion Sensor - Image 3
HC SR505 Mini Infrared PIR Motion Sensor - Image 4

HC SR505 Mini Infrared PIR Motion Sensor

For Bulk or B to B enquirers kindly mail us on business@technosam.in or call +91 7030 10 3620

Original price was: ₹140.00.Current price is: ₹92.00.

  1. Wide Working Voltage Range: DC 4.5V- 20V
  2. Current Drain: <60uA
  3. Detection Angle: <140°
  4. Detection Distance: 3 to 7m (can be adjusted)
  5. Blockade time: 2.5s (Default)
  6.  Work temperature: -20-+80°C
  7. Jumper for trigger.
In Stock

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Have a Question? Ask a Specialist

(+91) 7030 10 3620 Mon to Fri 10 am to 5 PM

Low Prices

Affordable & Low Price Always

Genuine Products

Always The Correct Part

Same Day Despatch

We Fulill Order The Same Day

Easy Returns.

Quick & Hassle Free 7 Days Retrun

Category:
Brand:

Description

HC SR505 Mini Infrared PIR Motion Sensor Infrared Detector Module is based on infrared technology, It automatically controls the products with high sensitivity, high reliability, ultra-small size, and ultra-low-voltage operation mode.

It is widely used in various auto-sensing of electrical equipment, especially battery-powered automatic control products.

Applications of HC SR505 Mini Infrared PIR Motion Sensor
  1. Body induction lamps.
  2. Body sensors toys.
  3. Security Products.
  4. Industrial automation and control.
  5. Auto-sensing of electrical equipment.
  6. Battery-powered automatic control.

Features of HC SR505 Mini Infrared PIR Motion Sensor :

  1. Low-power consumption
  2. Output level: High 3.3V / Low 0V
  3. Trigger: repeatable trigger (default)
  4. Automatic induction: to enter the sensing range of the output is high, people leave the sensor range automatically delay off high, output low. Ultra-small size.
  5. Repeatable trigger: the sensor output high, the delay period, if there is human activity in its sensing range, the output will remain high until people leave after the high variable delay Low (automatically extended sensor module detects the human body after every activity a delay period, and the last time an event is the starting point of the delay time).
  6. Wide operating voltage range: the default operating voltage DC4.5V-20V.
  7. Micropower: quiescent current <50 microamps, especially for battery-powered automatic control products.
  8. Output high signal: easy docking and all kinds of circuits.

Package Includes :

1 x HC SR505 Mini Infrared PIR Motion Sensor Precise Infrared Detector Module.
