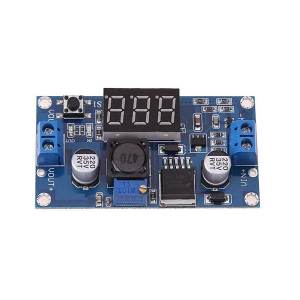

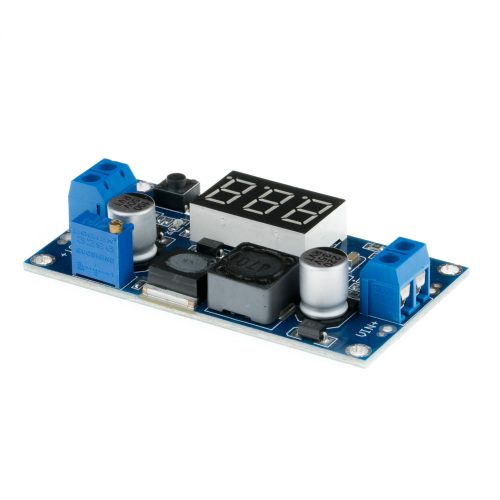

LM2577 3A DC-DC Step UP LED Voltmeter 3-34 to 4-35V
LM2577 3A DC-DC Step UP LED Voltmeter 3-34 to 4-35V - Image 2

LM2577 3A DC-DC Step UP LED Voltmeter 3-34 to 4-35V

For Bulk or B to B enquirers kindly mail us on business@technosam.in or call +91 7030 10 3620

Original price was: ₹890.00.Current price is: ₹344.00.

  1. Input voltage range : 3-34V DC
  2. Output voltage range : 4-35v DC adjustable
  3. Output current:3A
  4. Voltmeter range:0 to 40V,error +-0.1v
  5. Multiple output regulator.
  6. One button to switch input and output voltage display.
  7. Power-down memory function.
  8. Press the button for 3 seconds can turn OFF/ON the LED display.
In Stock

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Have a Question? Ask a Specialist

(+91) 7030 10 3620 Mon to Fri 10 am to 5 PM

Low Prices

Affordable & Low Price Always

Genuine Products

Always The Correct Part

Same Day Despatch

We Fulill Order The Same Day

Easy Returns.

Quick & Hassle Free 7 Days Retrun

Category:
Brand:

Description

It is a LM2577 3A DC-DC Step UP LED Voltmeter 3-34 to 4-35V. The LM2577 3A DC-DC Step UP LED Voltmeter 3-34 to 4-35V Adjustable Boost Converter module is a 150 KHz fixed frequency PWM buck (step-down) DC/DC module. Requiring a minimum number of external components, these regulators are cost-effective and are simple to use.

This version of LM2577 DC-DC step-up (boost) power supply module includes the very useful addition of an integrated digital voltage meter.

Features of LM2577 3A DC-DC Step UP LED Voltmeter 3-34 to 4-35V:

  1. Multiple output regulator.
  2. One button to switch input and output voltage display.
  3. Power-down memory function.
  4. Press the button for 3 seconds can turn OFF/ON the LED display.
  5. With wiring terminal.
  6. When adjusting the blue potentiometer, please use a multimeter to monitor the voltage
  7. Rotating Clockwise can raise the voltage while rotating  counterclockwise could lower the voltage
  8. When the module output voltage cannot be adjusted, ( the output voltage is always equal to the input voltage ) please adjust the potentiometer counterclockwise 20 laps (20 turns) or more till it works.

Package Includes :

1 x LM2577 3A DC-DC Step UP Voltmeter.
