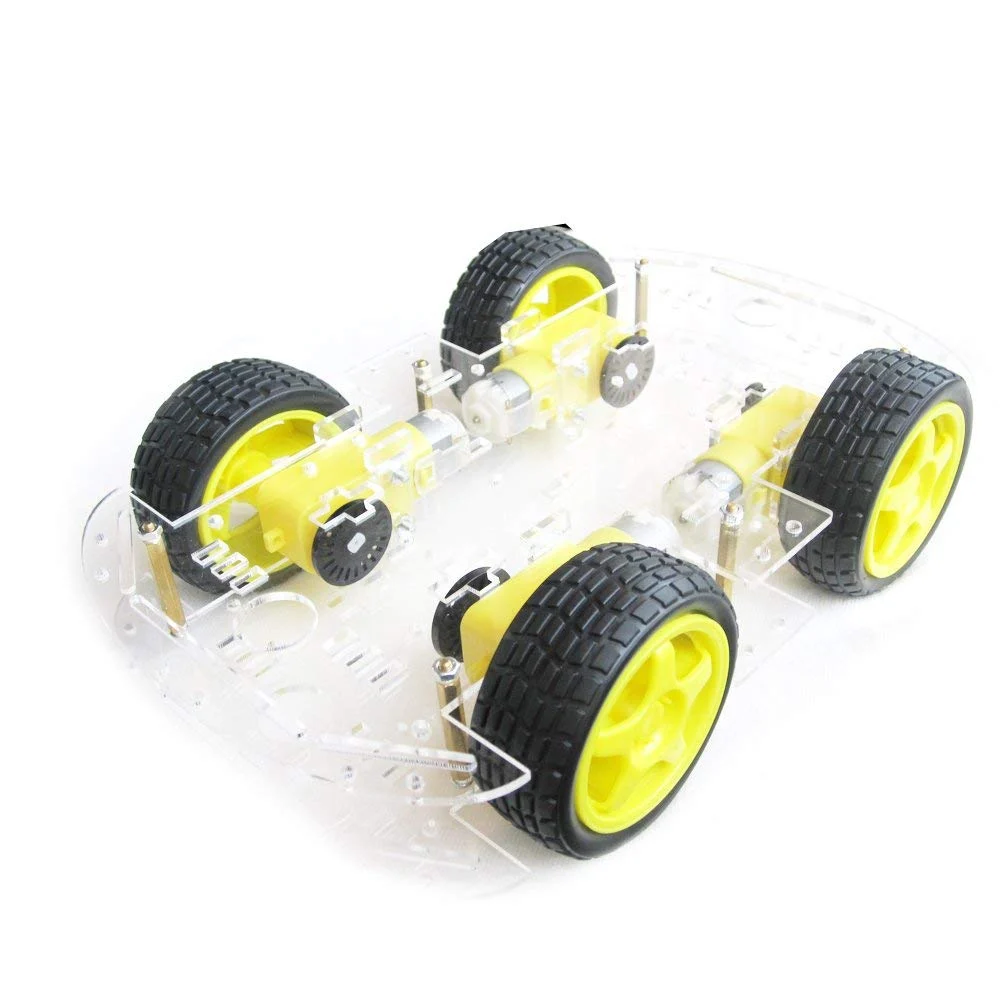

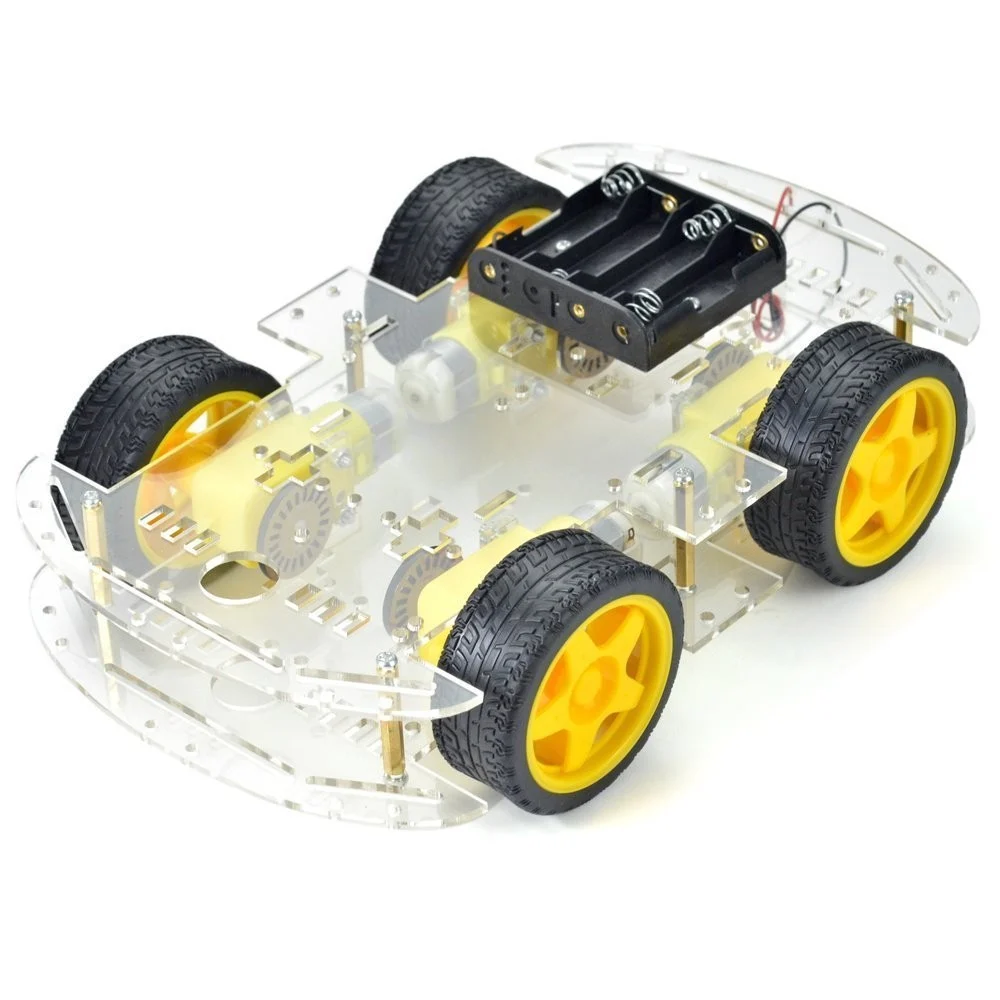

Longer version of 4 WD Double Layer Smart Car Chassis Kit

Description

Longer version of 4 WD Double Layer Smart Car Chassis Kit. It comes with four pairs of Geared Motors and Wheels. All the products included in this car kit are quality products. The chassis used in this Longer version of 4 WD Double Layer Smart Car Chassis Kit is transparent to create dynamic handling of the components mounted on your robotic vehicle.

For more robotic vehicle kits, check out our Robots and Kits category.

Features :

1. Very handy and simple in assembling/disassembling.
2. Strong components to withstand extreme terrain conditions.
3. Transparent Car Chassis.
4. Attractive design.
5. Double-layer structure, much of mounting holes, enough space
6. Easy to install a variety of control panels, sensors
7. Educational toys, Ideal for the DIY platform

Specifications:

For BO Motor:

1. Operating Voltage: 3V~6V DC
2. Gear Ratio 1:48
3. No-load speed(5V): about 208RPM
4. Rated Torque: 0.8 Kg.cm @ 5V
5. Load current: 170 mA (when it is 4.5V)
6. Size: 70 x 23  x 18 mm
7. Weight: 28g
8. Shaft Length: 10 mm
9. Shaft Type: 6 mm, Double-D

For Wheel:

1. Loading Capacity: Max 2.5Kg
2. Double D-hole For BO Motor: 6 mm
3. Weight: 34g
4. Wheel Diameter: 65 mm
5. Color: Black (Tyre), Yellow (Rim)
6. Wheel width: 27 mm
7. Body Material: Plastic
8. Grip Material: Rubber

Package includes:

2 x Acrylic Transparent car floor
4 x High-Quality 65-mm Plastic wheels with Rubber Grip
4 x Dual shaft 200 RPM BO Gear Motor
4 x Coded Disk
8 x Acrylic Fasteners
1 x 4-AA Battery Holder
8 x Connecting Cable(Red and Black, Length: 20 cm each)
6 x M3 Brass Stand-Off
6 x M3 Cross-Head Bolt (Length: 8 mm )
8 x M3 Cross-Head Bolt (Length: 30 mm )
16 x M3 Nut
