MAX7219 Dot Matrix MCU Display Module 4 in 1
MAX7219 Dot Matrix MCU Display Module 4 in 1 - Image 2

MAX7219 Dot Matrix MCU Display Module 4 in 1

For Bulk or B to B enquirers kindly mail us on business@technosam.in or call +91 7030 10 3620

Original price was: ₹1,560.00.Current price is: ₹149.00.

  1. Easy to Install on Breadboard.
  2. Bright LED lights.
  3. Compact Design.
  4. LED Size: 3mm.
  5. Configuration: Common Anode.
In Stock

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Have a Question? Ask a Specialist

(+91) 7030 10 3620 Mon to Fri 10 am to 5 PM

Low Prices

Affordable & Low Price Always

Genuine Products

Always The Correct Part

Same Day Despatch

We Fulill Order The Same Day

Easy Returns.

Quick & Hassle Free 7 Days Retrun

Category:
Brand:

Description

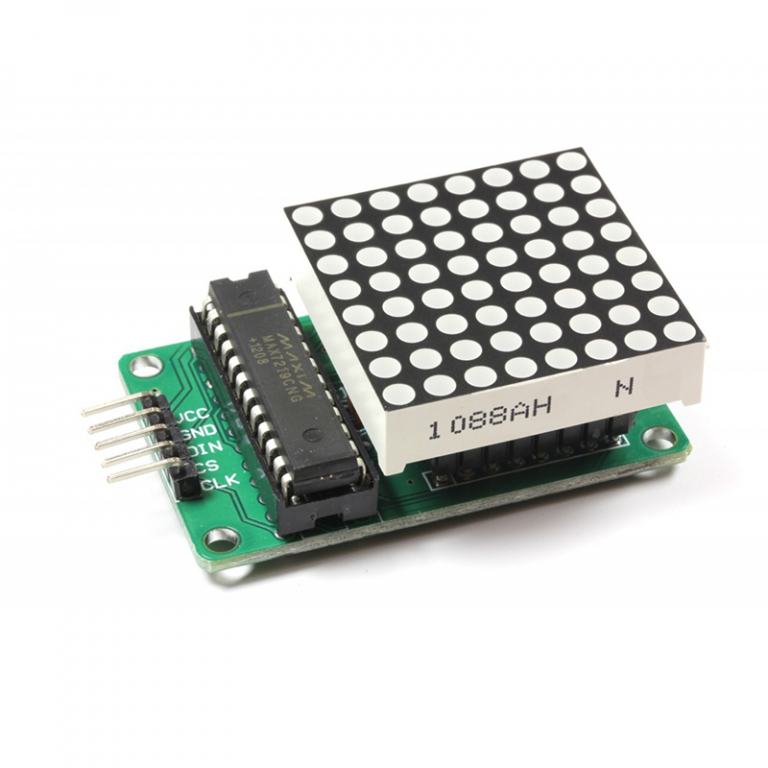

It is a MAX7219 Dot Matrix MCU Display Module 4 in 1. This is Dot Led Matrix Module incorporating MAX7219 Driver chip.

By using this dot LED module in your upcoming project,  you will be able to add some great cool animation.

The individual module features 8×8 LED’s, each controlled very precisely by the MAX7219 driver to generate the colour pattern you wish.

The great advantage of using this is users will have control over all of the 64 LED by just connecting 3 output communication wires to microcontrollers like Arduino etc.

This product has 4 Dot Matrix LED’s cascaded to form a single LED Display to allot more area to the user on the display.

The MAX7219 Dot Matrix MCU Display Module 4 in 1 is a serial input common-cathode driver that interfaces micro-controllers to LED matrices.

All common micro-controllers can be connected to this module by using a 4-wire serial interface. Each output can be addressed without refreshing the entire display. This module requires only 3 I/O lines for driving the display, making it ideal for your microcontroller projects.

Only one external register is used to set the segment current of each LED.

Features of MAX7219 Dot Matrix MCU Display Module 4 in 1 :

  1. Requires only 3 communication wires of MCU
  2. Pre-cascaded MAX7219 Dot Matrix MCU Display Module 4 in 1.
  3. The overall size of the display is very compact
  4. The PCB features M3 holes for mounting.
  5. Module with input and output interfaces
  6. Support for cascading multiple modules
  7. Quite large display

Package Includes :

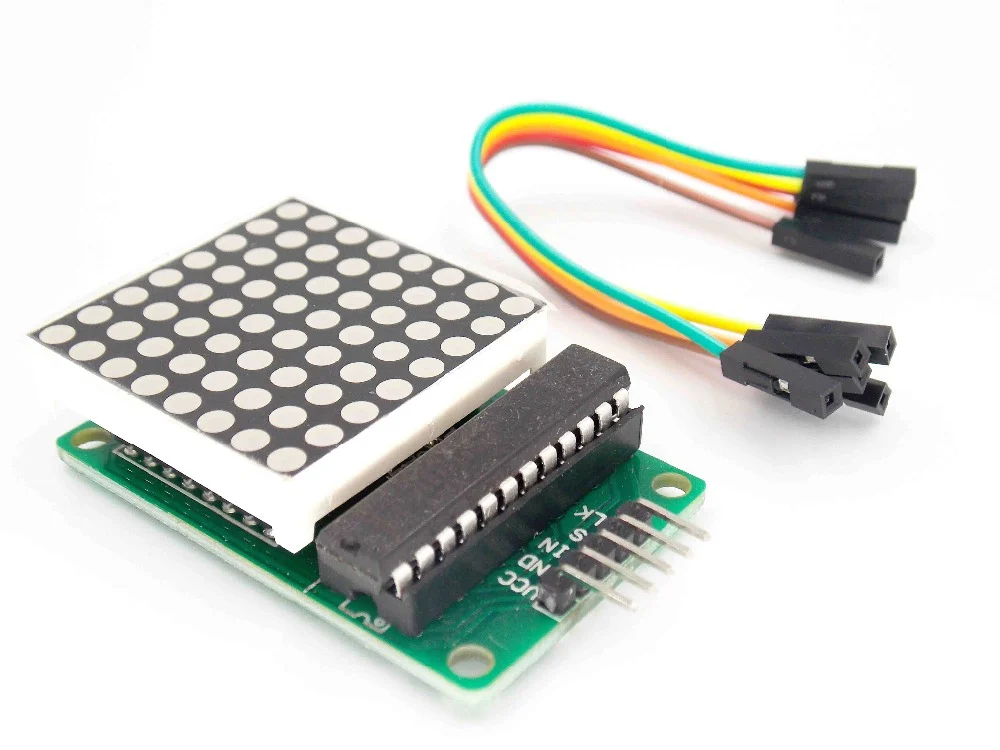

1 x MAX7219 Dot Matrix MCU Display Module 4 in 1

1 x Connecting Wire
