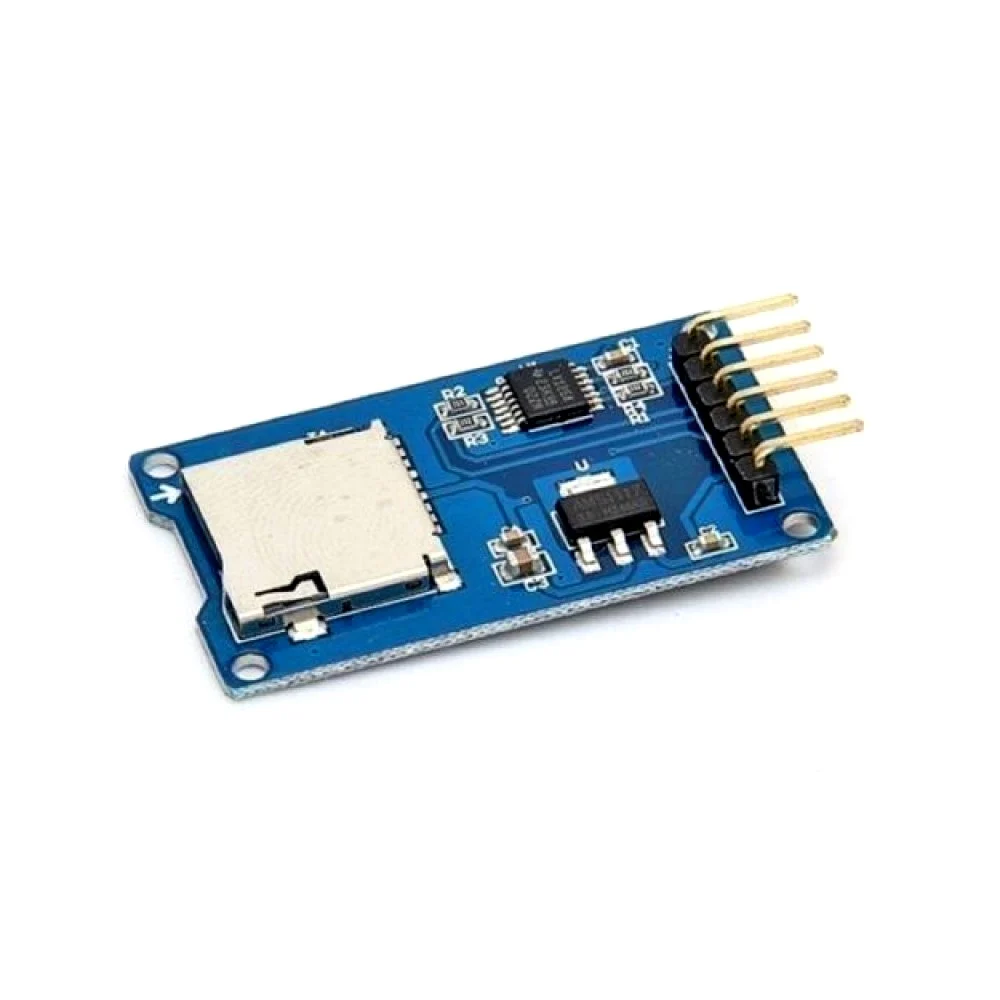

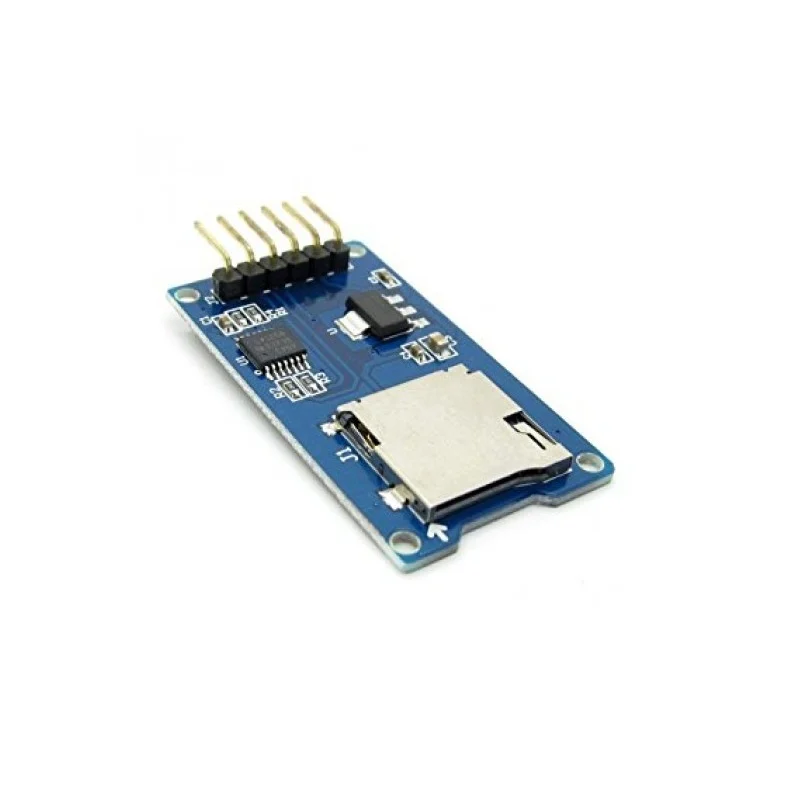

Micro SD Card Reader Module for Arduino
Micro SD Card Reader Module for Arduino - Image 2

Micro SD Card Reader Module for Arduino

For Bulk or B to B enquirers kindly mail us on business@technosam.in or call +91 7030 10 3620

Original price was: ₹100.00.Current price is: ₹41.00.

  1. Power supply: 4.5V – 5.5V, 3.3V voltage regulator circuit board
  2. Positioning holes: 4 M2 screws positioning hole diameter of 2.2mm
  3. Control Interface: GND, VCC, MISO, MOSI, SCK, CS
  4. Size: 45 x 28mm
  5. Net weight: 6g
In Stock

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Have a Question? Ask a Specialist

(+91) 7030 10 3620 Mon to Fri 10 am to 5 PM

Low Prices

Affordable & Low Price Always

Genuine Products

Always The Correct Part

Same Day Despatch

We Fulill Order The Same Day

Easy Returns.

Quick & Hassle Free 7 Days Retrun

Category:
Brand:

Description

The Module is a simple solution for transferring data to and from a standard SD card. The pinout is directly compatible with Not only with Arduino as shown in the diagram in below, but can also be used with other microcontrollers. Micro SD Card Reader Module has an SPI interface which is compatible with any sd card and it uses 5V or 3.3V power supply which is compatible with Arduino UNO/Mega.SD module has various applications such as data logger, audio, video, graphics.

Features:

  1. Support Micro SD Card (<=2G), Micro SDHC card (<=32G) (high-speed card)
  2. The level conversion circuit board that can interface level is 5V or 3.3V
  3. Power supply is 4.5V ~ 5.5V, 3.3V voltage regulator circuit board
  4. Communication interface is a standard SPI interface.

Package Includes:

1 x Micro SD Card Reader Module
