PIR Motion Detector Sensor Module HC SR501 Blue
PIR Motion Detector Sensor Module HC SR501 Blue - Image 2
PIR Motion Detector Sensor Module HC SR501 Blue - Image 3
PIR Motion Detector Sensor Module HC SR501 Blue - Image 4

PIR Motion Detector Sensor Module HC SR501 Blue

For Bulk or B to B enquirers kindly mail us on business@technosam.in or call +91 7030 10 3620

Original price was: ₹110.00.Current price is: ₹70.00.

  1. Wide Working Voltage Range: DC 4.5V- 20V
  2. Current Drain: <60uA
  3. Detection Angle: <140°
  4. Detection Distance: 3 to 7m (can be adjusted)
  5. Blockade time: 2.5s (Default)
  6.  Work temperature: -20-+80°C
  7. Jumper for trigger.
In Stock

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Have a Question? Ask a Specialist

(+91) 7030 10 3620 Mon to Fri 10 am to 5 PM

Low Prices

Affordable & Low Price Always

Genuine Products

Always The Correct Part

Same Day Despatch

We Fulill Order The Same Day

Easy Returns.

Quick & Hassle Free 7 Days Retrun

Category:
Brand:

Description

It is PIR Motion Detector Sensor Module HC SR501 Blue.  The PIR Motion Sensor Detector Module HC SR501 allows you to sense motion. It is almost always used to detect the motion of a human body within the sensor’s range. It is often referred to using “PIR”, “Pyroelectric”, “Passive Infrared” and “IR Motion” sensor.

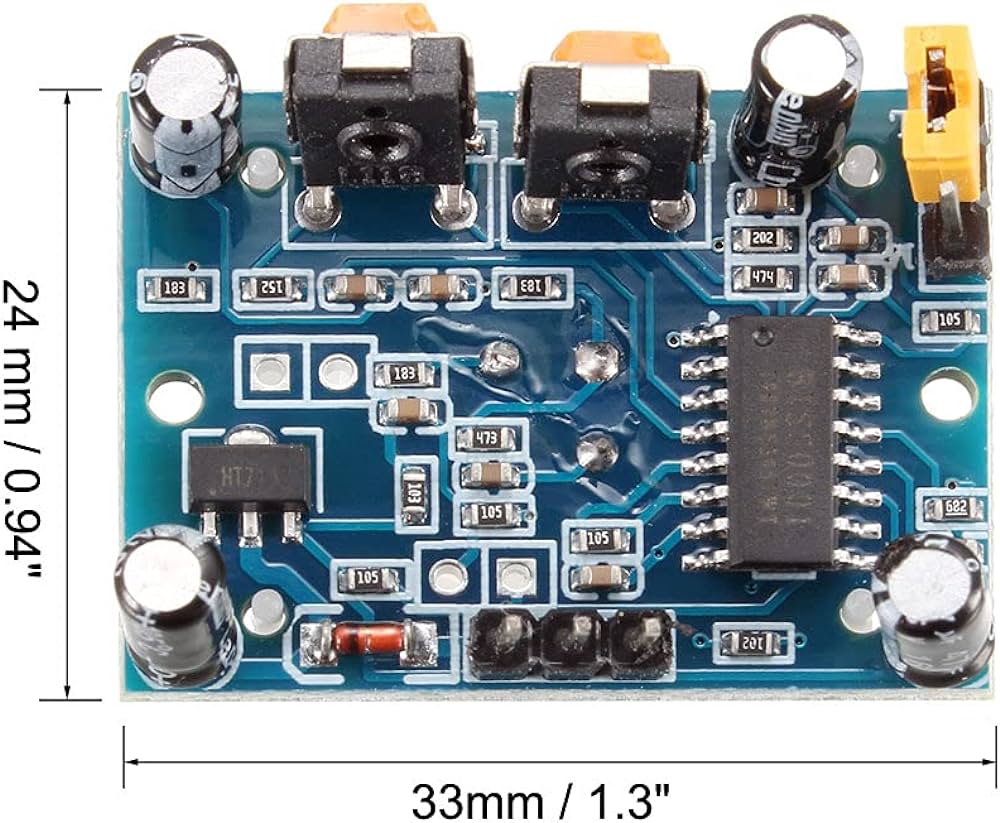

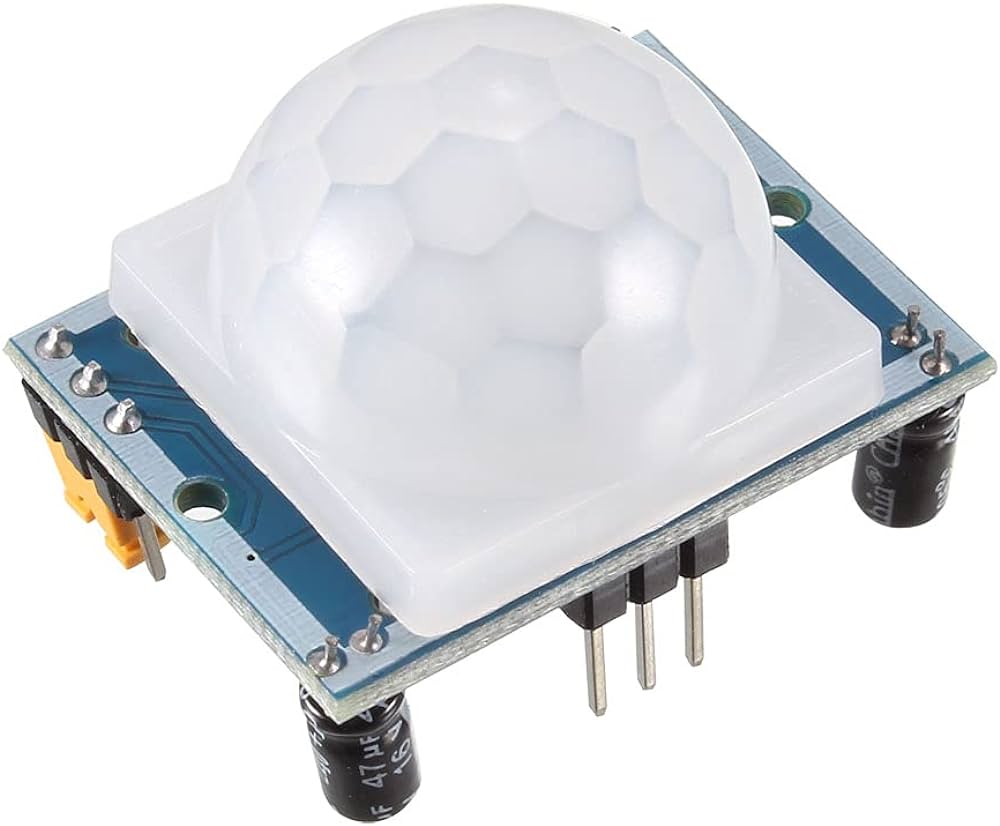

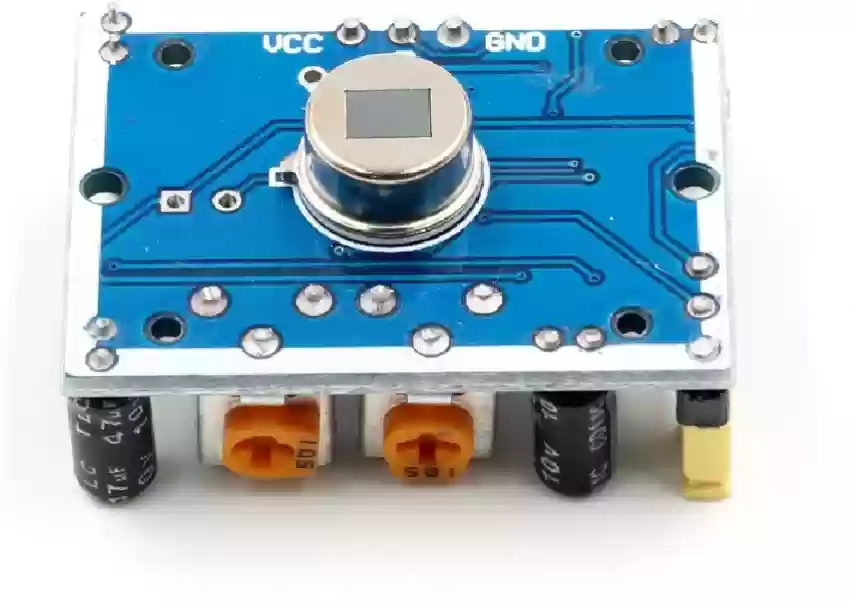

The module has an onboard pyroelectric sensor, conditioning circuitry, and a dome-shaped Fresnel lens. It has a delay time adjustment Potentiometer and sensitivity adjustment Potentiometer. Compatible with ARDUINO, RASPBERRY PI, AVR, PIC, 8051, etc.
