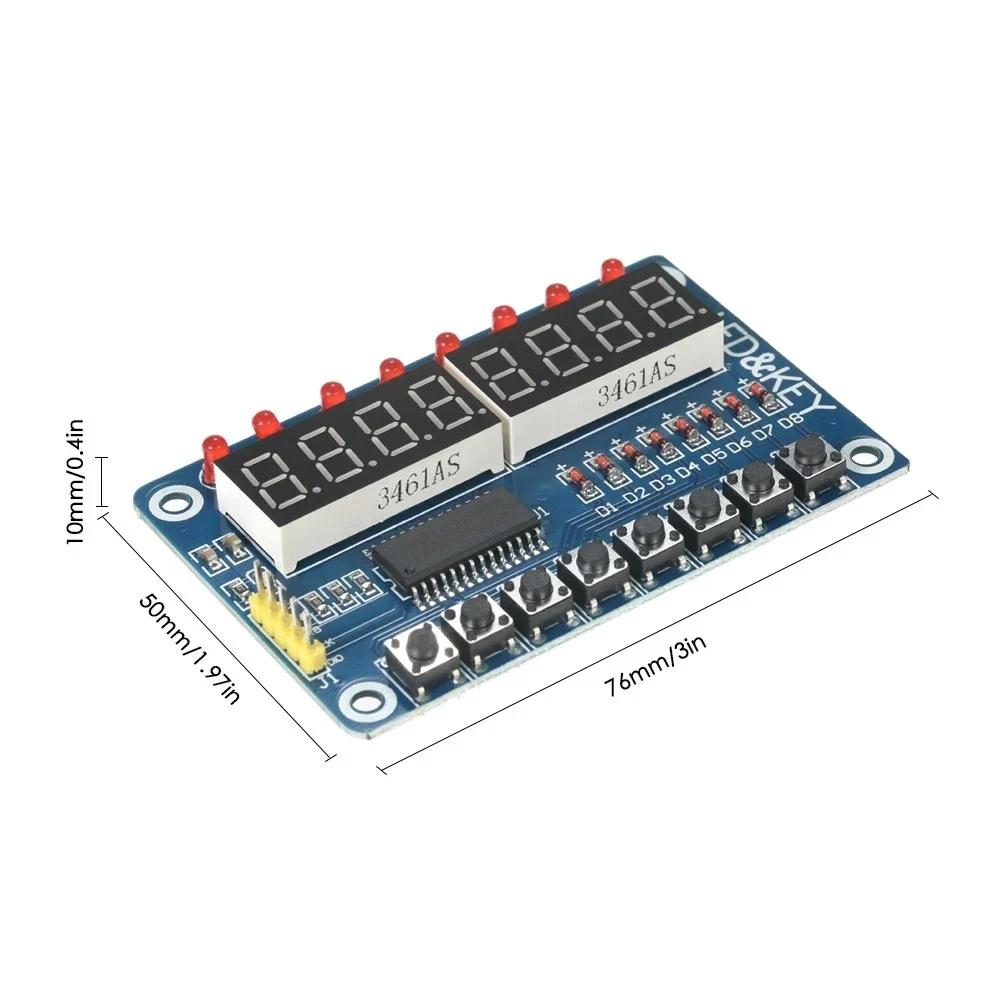

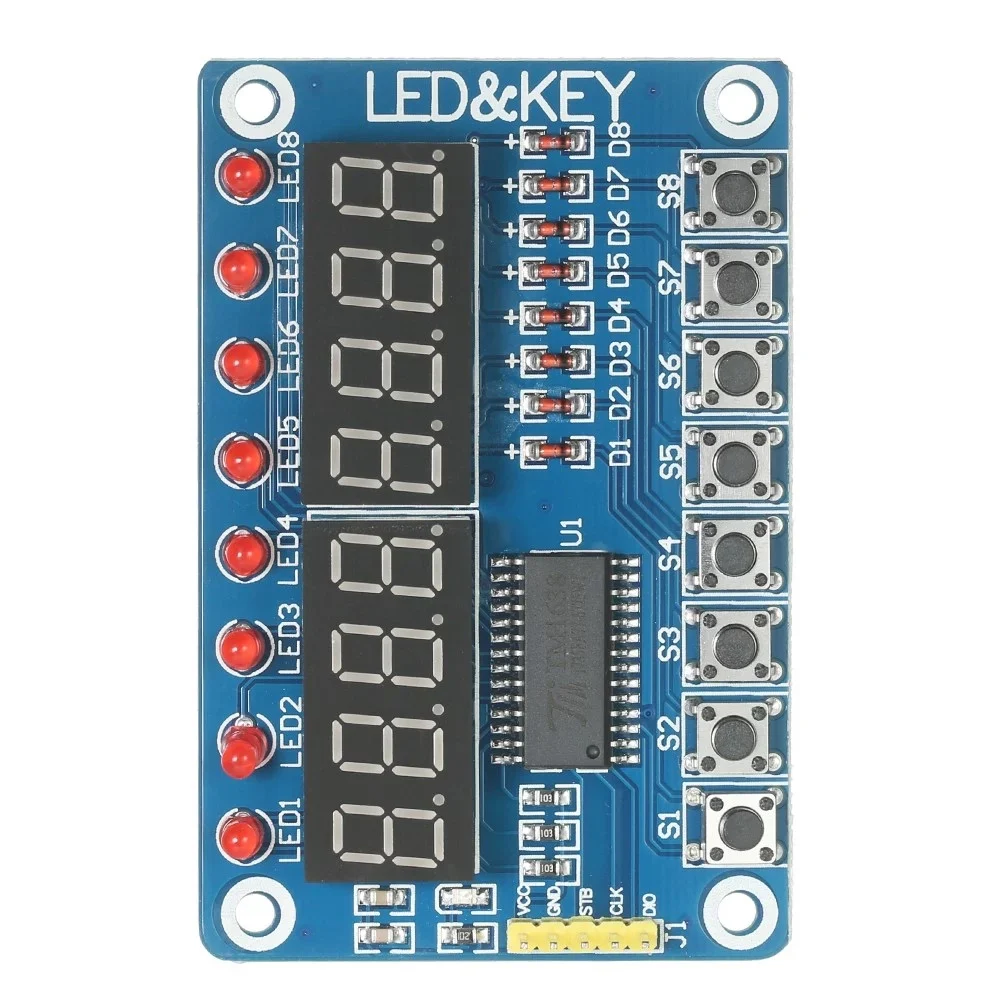

TM1638 Button Digital LED Display Module
TM1638 Button Digital LED Display Module - Image 2
TM1638 Button Digital LED Display Module - Image 3

TM1638 Button Digital LED Display Module

For Bulk or B to B enquirers kindly mail us on business@technosam.in or call +91 7030 10 3620

Original price was: ₹286.00.Current price is: ₹146.00.

  1. Use TM1638 digital tube drive chip to drive a common cathode LED digital tube.
  2. Can be extended to 3 * 8 buttons, led digital tube and can be controlled separately.
  3. Support 8 brightness control, led digital tube and use the same brightness.
  4. Support cascading up to 6 of the same module.
  5. 8 LED, 8-bit digital tube and 8 buttons, common cathode LED digital tube, such as STC microcontroller can be directly connected.
In Stock

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Have a Question? Ask a Specialist

(+91) 7030 10 3620 Mon to Fri 10 am to 5 PM

Low Prices

Affordable & Low Price Always

Genuine Products

Always The Correct Part

Same Day Despatch

We Fulill Order The Same Day

Easy Returns.

Quick & Hassle Free 7 Days Retrun

Category:

Description

The TM1638 Button Digital LED Display Module is used in chip TM1638, a collection of these three common MCU peripheral circuit, the biggest feature just takes three microcontroller IO port to drive, do not need to scan display and key scanning microcontroller intervention, only need to read the relevant register send display data or test button, save MCU resources.

We usually use an external microcontroller 8 LED, 8 digital tubes, eight keys which will occupy the number of IO ports, far more than three IO mouth it, but with this module can be achieved. The practical application of key sensitive display good results. TM1638 digital tube drive chip to drive a common cathode LED digital tube. TM1638 Button Digital LED Display Module Wiring: VCC GND connected to 5V power supply, STB CLK DIO connected microcontroller IO port. The module comes with 8 buttons, 8 LED, 8 digital tube, common cathode LED digital tube, such as STC microcontroller can be directly connected

Features:

  1. Use TM1638 digital tube drive chip to drive a common cathode LED digital tube.
  2. Can be extended to 3 * 8 buttons, led digital tube and can be controlled separately.
  3. Support 8 brightness control, led digital tube and use the same brightness.
  4. Support cascading up to 6 of the same module.
  5. Wiring: VCC GND connected the 5V power supply, STB CLK DIO connected microcontroller IO port.
  6. 8 LED, 8-bit digital tube and 8 buttons, common cathode LED digital tube, such as STC microcontroller can be directly connected

Package Includes:1 x TM1638 Button Digital LED Display Module
