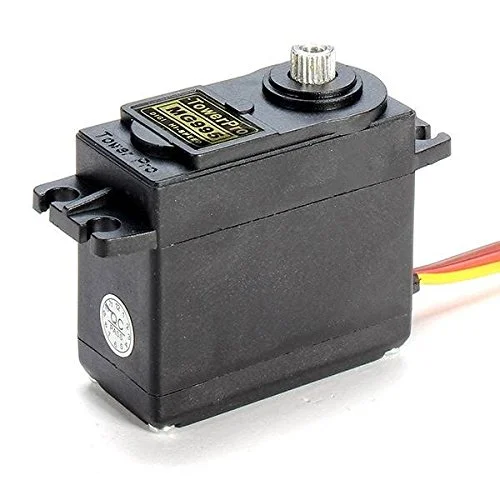

TowerPro MG995 Metal Gear Servo Motor (360°Rotation)

Description

It is a TowerPro MG995 Metal Gear Servo Motor (360°Rotation) Digital Servo Motor which receives and processes PWM signal faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces.

This TowerPro SG90 Continuous Rotation 360 Degree Servo Motor is special among all the available servo motors because its operation is very different from that of a standard servo. As instead of going to a specified angle, this servo will be static at a 1.5ms pulse, a longer pulse gives forward rotation and a shorter pulse give backward rotation.

They are packed within a tight sturdy plastic case which makes them water and dust resistant which is a very useful feature in RC planes, Boats, and RC Monster Trucks etc. It equips 3-wire JR servo plug which is compatible with Futaba connectors too.

Wire Description

RED – Positive

Brown – Negative

Orange – Signal

NOTE :

This servo draws high current while operation (up to 2 amp stall), to make this servo work with Arduino or any other microcontroller, please do following connections.

1. PLEASE MAKE SURE THAT YOUR SYSTEM HAS COMMON GROUND.
2. POWER SOURCE ANYTHING BATTERY/SMPS/ADAPTER.

Features :

1. The connection cable is thicker.
2. Equips high-quality motor.
3. High resolution
4. Accurate positioning
5. Fast control response
6. Constant torque throughout the servo travel range
7. Excellent holding power

Package Includes :

1 x TowerPro MG995 Servo Motor with Cable

Set of Horns

1. One Point
2. Two Point
3. Four Point

1 x Set of Screws

1 x Aluminum Servo Horn Arm
