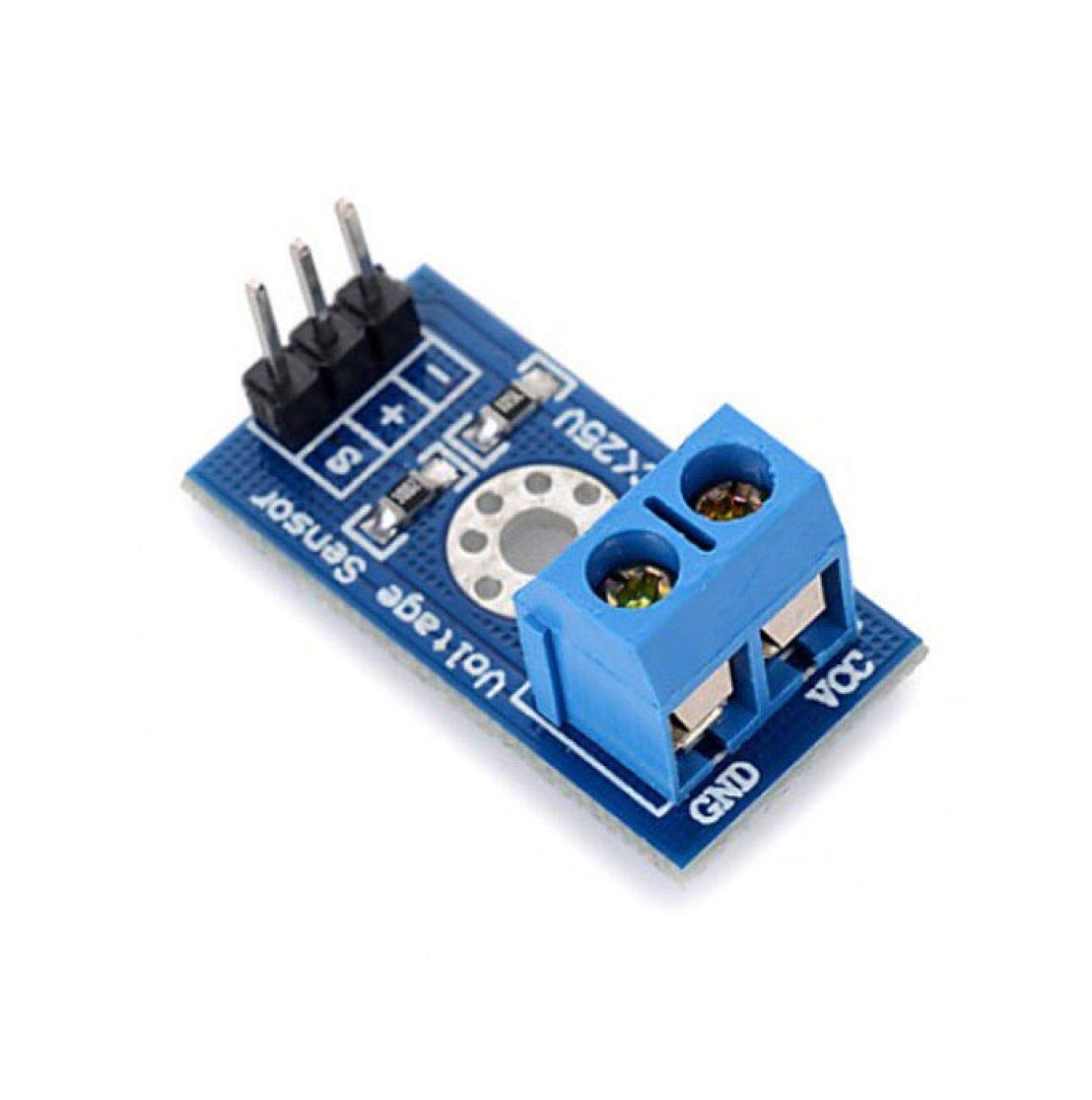

Voltage Detection Sensor Module 25V

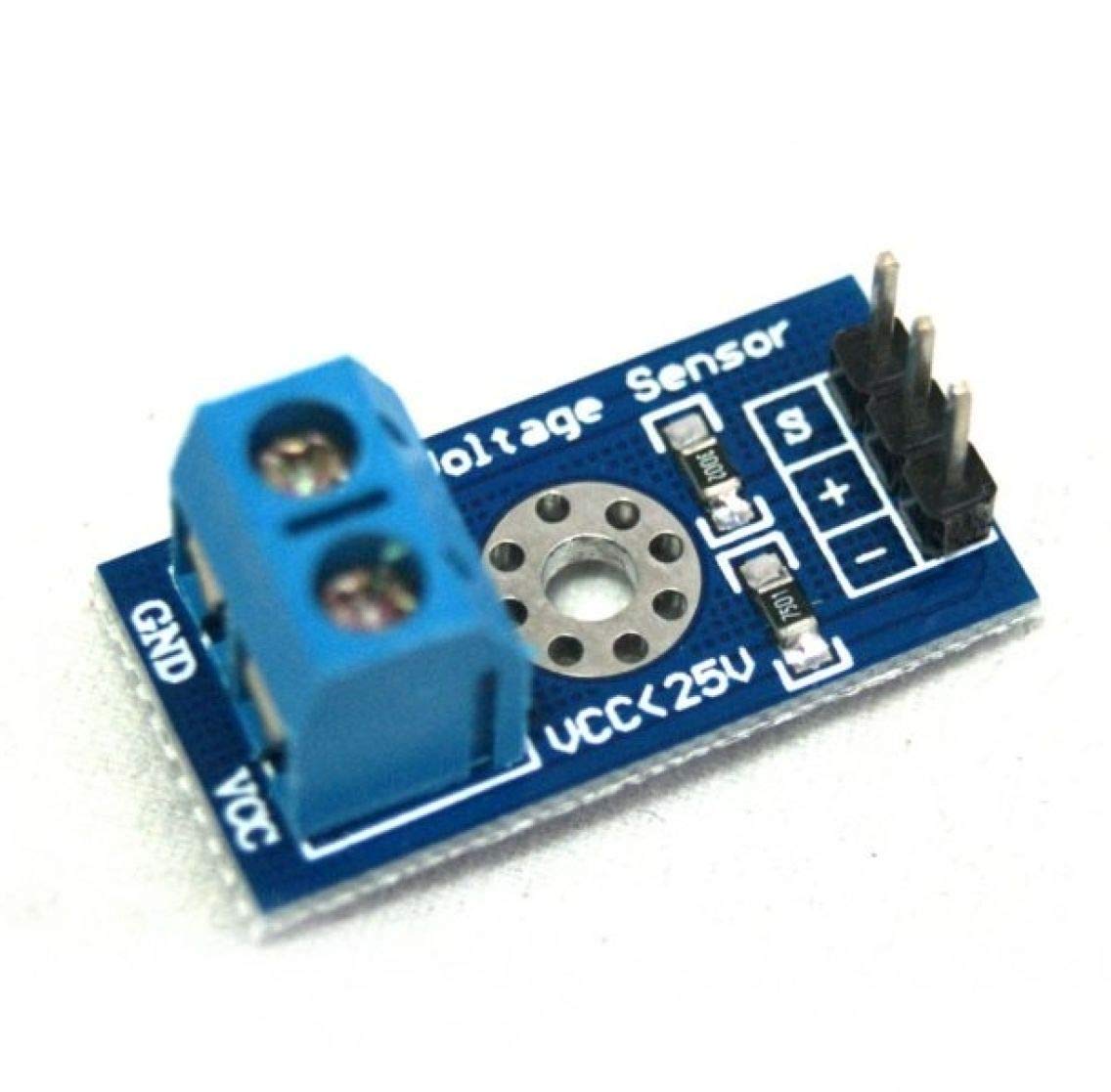

Voltage Detection Sensor Module 25V - Image 2
Voltage Detection Sensor Module 25V - Image 3

Voltage Detection Sensor Module 25V

For Bulk or B to B enquirers kindly mail us on business@technosam.in or call +91 7030 10 3620

Original price was: ₹80.00.Current price is: ₹20.00.

  1. Wide Working Voltage Range: DC 4.5V- 20V
  2. Current Drain: <60uA
  3. Detection Angle: <140°
  4. Detection Distance: 3 to 7m (can be adjusted)
  5. Blockade time: 2.5s (Default)
  6.  Work temperature: -20-+80°C
  7. Jumper for trigger.
In Stock

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Have a Question? Ask a Specialist

(+91) 7030 10 3620 Mon to Fri 10 am to 5 PM

Low Prices

Affordable & Low Price Always

Genuine Products

Always The Correct Part

Same Day Despatch

We Fulill Order The Same Day

Easy Returns.

Quick & Hassle Free 7 Days Retrun

Category:
Brand:

Description

It is Voltage Detection Sensor Module 25V. This is a simple but very useful module which uses a potential divider to reduce an input voltage by a factor of 5. The Voltage Sensor Module 25V allows you to use the analog input of a micro controller to monitor voltages much higher than it capable of sensing.

For example with a 0-5V analog input range, you are able to measure a voltage up to 25V. This voltage sensor module also includes convenient screw terminals for easy and secure connection of a wire.

Features of Voltage Detection Sensor Module 25V :

  1. Output Interface: “+ ” connected 5/3.3V, “-” connected GND, “s” connected Arduino AD pins
  2. DC input interface: red terminal positive with VCC, negative with GND
  3. You can also use the IICLCD1602 LCD to display voltage.
  4. By 3P connector, connect this module with the expansion of board Arduino, not only makes it easier for you to detect voltage battery.

Package Includes :

1×Voltage Detection Sensor Module 25V
